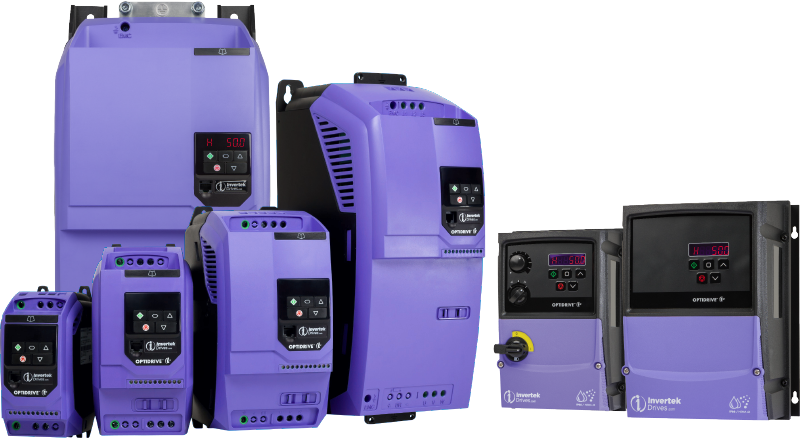

Optidrive E3

General Purpose Drive
110 – 480 V Single & 3 phase input
0.37 – 37 kW
0.5 – 50 HP
110 – 480 V Single & 3 phase input
0.37 – 37 kW
0.5 – 50 HP
IP66 / NEMA 4X Outdoor IP66 / NEMA 4X
  • Modbus RTU
  • CAN
on board as standard

Compact, reliable and easy to use

Simply power on and Optidrive E3 is up and running, providing precise motor control and energy savings using the factory settings.

  • CE
  • UL
  • RCM

Sensorless vector control for all motor types:

  • IM IE2, IE3, IE4 & IE5 Induction Motor
  • PM AC Permanent Magnet Motor
  • BLDC Brushless DC Motor
  • SynRM Synchronous Reluctance Motor
  • LSPM Line Start PM Motor

Simple Comissioning

14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.

Intuitive Keypad Control

Precise digital control at the touch of a button.

Application Macros

Switch between Industrial, Pump & Fan modes to optimise Optidrive E3 for your application.

Internal Category C1 EMC Filter

An internal filter in every Optidrive E3 saves cost and time for installation.

Cat C1 according to EN61800-3:2004

Optidrive E3 in industry

All Case Studies
  • Food & Beverage

    US mixer manufacturer chooses ‘reliable and easy to use’ Optidrive VFDs

  • HVAC

    Multi-storey car park ventilation system operates efficiently with Optidrive E3 VFDs

  • General Automation

    40% reduction in machining times achieved with Optidrive E3

  • Agriculture
  • Cranes & Hoists
  • Food & Beverage
  • General Automation
  • HVAC
  • Leisure
  • Marine
  • Material Handling
  • Mining
  • Printing
  • Refrigeration & Air Conditioning
  • Solar Pumping
  • Textiles & Paper
  • Water & Wastewater

Need single phase motor control?

Optidrive E3 for Single Phase Motors is a variable frequency drive designed specifically for PSC (Permanent Split Capacitor) or shaded‑pole single phase induction motors.

Optidrive E3 Single Phase Logo
  • SGS ISO 9001
  • SGS ISO 14001

GBManufactured in the UK

Invertek’s products are designed and manufactured in the UK to the quality and environmental management system principals of ISO 9001 and ISO 14001:2015
