Optidrive E3 Specification
Size & Weight
| IP20 |
|---|
| Height mm (in) |
| Width mm (in) |
| Depth mm (in) |
| Weight kg (lb) |
| Fixings |
| Packaged Height mm (in) |
| Packaged Width mm (in) |
| Packaged Depth mm (in) |
| Packaged Weight kg (lb) |
| IP20 | Size 1 |
|---|---|
| Height mm (in) | 173 (6.81) |
| Width mm (in) | 83 (3.27) |
| Depth mm (in) | 123 (4.84) |
| Weight kg (lb) | 1 (2.2) |
| Fixings | 4 x M5 |
| Packaged Height mm (in) | 165 (6.5) |
| Packaged Width mm (in) | 125 (4.92) |
| Packaged Depth mm (in) | 235 (9.25) |
| Packaged Weight kg (lb) | 1.2 (2.65) |
| IP20 | Size 2 |
|---|---|
| Height mm (in) | 221 (8.7) |
| Width mm (in) | 110 (4.33) |
| Depth mm (in) | 150 (5.91) |
| Weight kg (lb) | 1.7 (3.75) |
| Fixings | 4 x M5 |
| Packaged Height mm (in) | 234 (9.21) |
| Packaged Width mm (in) | 144 (5.67) |
| Packaged Depth mm (in) | 260 (10.24) |
| Packaged Weight kg (lb) | 1.9 (4.19) |
| IP20 | Size 3 |
|---|---|
| Height mm (in) | 261 (10.28) |
| Width mm (in) | 131 (5.16) |
| Depth mm (in) | 175 (6.89) |
| Weight kg (lb) | 3.2 (7.05) |
| Fixings | 4 x M5 |
| Packaged Height mm (in) | 254 (10) |
| Packaged Width mm (in) | 162 (6.38) |
| Packaged Depth mm (in) | 315 (12.4) |
| Packaged Weight kg (lb) | 3.5 (7.72) |
| IP20 | Size 4 |
|---|---|
| Height mm (in) | 420 (16.54) |
| Width mm (in) | 171 (6.73) |
| Depth mm (in) | 212 (8.35) |
| Weight kg (lb) | 9.1 (20.06) |
| Fixings | 4 x M8 |
| Packaged Height mm (in) | 340 (13.39) |
| Packaged Width mm (in) | 282 (11.1) |
| Packaged Depth mm (in) | 560 (22.05) |
| Packaged Weight kg (lb) | 10.5 (23.15) |
| IP20 | Size 5 |
|---|---|
| Height mm (in) | 486 (19.13) |
| Width mm (in) | 222 (8.74) |
| Depth mm (in) | 226 (8.9) |
| Weight kg (lb) | 18.1 (39.9) |
| Fixings | 4 x M8 |
| Packaged Height mm (in) | 356 (14.02) |
| Packaged Width mm (in) | 336 (13.23) |
| Packaged Depth mm (in) | 658 (25.91) |
| Packaged Weight kg (lb) | 19 (41.89) |
| IP66 Outdoor |
|---|
| Height mm (in) |
| Width mm (in) |
| Depth mm (in) |
| Weight kg (lb) |
| Fixings |
| Packaged Height mm (in) |
| Packaged Width mm (in) |
| Packaged Depth mm (in) |
| Packaged Weight kg (lb) |

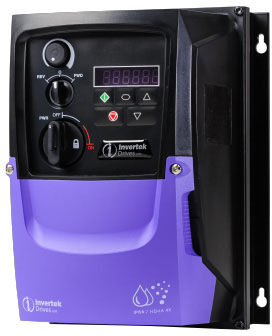

| IP66 Outdoor | Size 1 |
|---|---|
| Height mm (in) | 232 (9.13) |
| Width mm (in) | 161 (6.34) |
| Depth mm (in) | 162 (6.38) |
| Weight kg (lb) | 2.3 (5.07) |
| Fixings | 4 x M4 |
| Packaged Height mm (in) | 205 (8.07) |
| Packaged Width mm (in) | 210 (8.27) |
| Packaged Depth mm (in) | 345 (13.58) |
| Packaged Weight kg (lb) | 2.9 (6.39) |

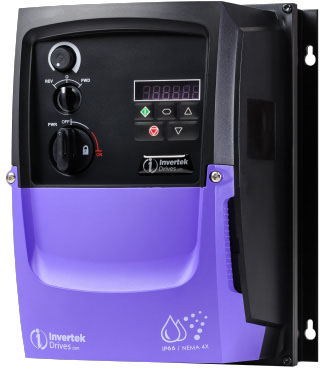

| IP66 Outdoor | Size 2 |
|---|---|
| Height mm (in) | 257 (10.12) |
| Width mm (in) | 188 (7.4) |
| Depth mm (in) | 182 (7.17) |
| Weight kg (lb) | 3.5 (7.72) |
| Fixings | 4 x M4 |
| Packaged Height mm (in) | 215 (8.46) |
| Packaged Width mm (in) | 235 (9.25) |
| Packaged Depth mm (in) | 375 (14.76) |
| Packaged Weight kg (lb) | 4.2 (9.26) |

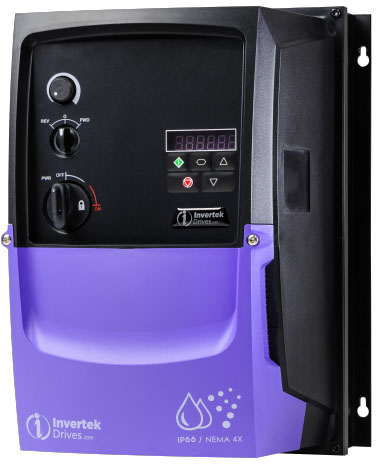

| IP66 Outdoor | Size 3 |
|---|---|
| Height mm (in) | 310 (12.2) |
| Width mm (in) | 211 (8.31) |
| Depth mm (in) | 235 (9.25) |
| Weight kg (lb) | 6.6 (14.55) |
| Fixings | 4 x M4 |
| Packaged Height mm (in) | 305 (12.01) |
| Packaged Width mm (in) | 270 (10.63) |
| Packaged Depth mm (in) | 440 (17.32) |
| Packaged Weight kg (lb) | 7.6 (16.76) |
| IP66 Outdoor | Size 4 |
|---|---|
| Height mm (in) | 360 (14.17) |
| Width mm (in) | 240 (9.45) |
| Depth mm (in) | 271 (10.67) |
| Weight kg (lb) | 9.5 (20.94) |
| Fixings | 4 x M4 |
| Packaged Height mm (in) | 325 (12.8) |
| Packaged Width mm (in) | 295 (11.61) |
| Packaged Depth mm (in) | 425 (16.73) |
| Packaged Weight kg (lb) | 11.5 (25.35) |
Technical Specification
Input Ratings
Supply Voltage
100 – 115V ± 10%
200 – 240V ± 10%
380 – 480V ± 10%
200 – 240V ± 10%
380 – 480V ± 10%
Supply Frequency
48 – 62Hz
Displacement Power Factor
> 0.98
Phase Imbalance
3% Maximum allowed
Inrush Current
< rated current
Power Cycles
120 per hour maximum, evenly spaced
Output Ratings
Output Power
110V 1 Ph Input: 0.5–1.5HP (230V 3 Ph Output)
230V 1 Ph Input: 0.37–4kW (0.5–5HP)
230V 3 Ph Input: 0.37–18.5kW (0.5–25HP)
400V 3 Ph Input: 0.75–37kW (1–50HP)
460V 3 Ph Input: 1–50HP
230V 1 Ph Input: 0.37–4kW (0.5–5HP)
230V 3 Ph Input: 0.37–18.5kW (0.5–25HP)
400V 3 Ph Input: 0.75–37kW (1–50HP)
460V 3 Ph Input: 1–50HP
Overload Capacity
150% for 60 Seconds
175% for 2.5 seconds
175% for 2.5 seconds
Output Frequency
0 – 500Hz, 0.1Hz resolution
Typical Efficiency
> 98%
Ambient Conditions
Temperature
Storage : −40 to 60°C
Operating :
IP20: −10 to 50°C
IP66: −20 to 40°C
−20 to 50°C (derated)
Operating :
IP20: −10 to 50°C
IP66: −20 to 40°C
−20 to 50°C (derated)
Altitude
Up to 1000m ASL without derating
Up to 2000m maximum UL approved
Up to 4000m maximum (non UL)
Up to 2000m maximum UL approved
Up to 4000m maximum (non UL)
Humidity
95% Max, non condensing
Vibration
Conforms to EN61800-5-1
Enclosure
Ingress Protection
IP20, IP66
Programming
Keypad
Built-in keypad as standard
Optional remote mountable keypad
Optional remote mountable keypad
Display
7 Segment LED
PC
OptiTools Studio
Control Specification
Control Method
Sensorless Vector Speed Control
PM Vector Control
BLDC Control
Synchronous Reluctance
PM Vector Control
BLDC Control
Synchronous Reluctance
PWM Frequency
4 – 32kHz Effective
Stopping Mode
Ramp to stop: User Adjustable 0.1 – 600 secs
Coast to stop
Coast to stop
Braking
Motor Flux Braking
Built-in braking transistor (not frame size 1)
Built-in braking transistor (not frame size 1)
Skip Frequency
Single point, user adjustable
Setpoint Control
Analog Signal
0 to 10 Volts
10 to 0 Volts
0 to 20mA
20 to 0mA
4 to 20mA
20 to 4mA
10 to 0 Volts
0 to 20mA
20 to 0mA
4 to 20mA
20 to 4mA
Digital
Motorised Potentiometer (Keypad)
Modbus RTU
CANopen
Modbus RTU
CANopen
Fieldbus
Built in
CANopen
125–1000 kbps
Modbus RTU
9.6–115.2 kbps selectable
I/O Specification
Power Supply
24 Volt DC, 100mA, Short Circuit Protected
10 Volt DC, 10mA for Potentiometer
10 Volt DC, 10mA for Potentiometer
Programmable Inputs
4 Total
2 Digital
2 Analog / Digital Selectable
2 Digital
2 Analog / Digital Selectable
Digital Inputs
8 – 30 Volt DC, internal or external supply
Response time < 4ms
Response time < 4ms
Analog Inputs
Resolution: 12 bits
Response time: < 4ms
Accuracy: ± 2% full scale
Parameter adjustable scaling and offset
Response time: < 4ms
Accuracy: ± 2% full scale
Parameter adjustable scaling and offset
Programmable Outputs
2 Total
1 Analog / Digital
1 Relay
1 Analog / Digital
1 Relay
Relay Outputs
Maximum Voltage: 250 VAC, 30 VDC
Switching Current Capacity : 6A AC, 5A DC
Switching Current Capacity : 6A AC, 5A DC
Analog Outputs
0 to 10 Volt
Application Features
PI Control
Internal PI Controller
Standby / Sleep Function
Standby / Sleep Function
Fire Mode
Bidirectional
Selectable Speed Setpoint (Fixed / PI / Analog / Fieldbus)
Selectable Speed Setpoint (Fixed / PI / Analog / Fieldbus)
Maintenance & Diagnostics
Fault Memory
Last 4 Trips stored with time stamp
Data Logging
Logging of data prior to trip for diagnostic purposes:
Output Current
Drive Temperature
DC Bus Voltage
Output Current
Drive Temperature
DC Bus Voltage
Monitoring
Hours Run Meter
Standards Compliance
Low Voltage Directive
Adjustable speed electrical power drive systems.
EMC requirements
EMC requirements
EMC Directive
2014/30/EU
Cat C1 according to EN61800-3:2004
Cat C1 according to EN61800-3:2004
Machinery Directive
2006/42/EC
Conformance
CE, UL, RCM
Environmental
IP20 products: Designed for use in environments where the level of chemically active substances does not exceed the limits of class 3C2, and where the levels of mechanically active substances do not exceed the limits of class 3S2 according to IEC60721-3.
IP66 products: Designed for use in environments where the level of chemically active substances does not exceed the limits of class 3C3, and where the levels of mechanically active substances do not exceed the limits of class 3S3 according to IEC60721-3.
IP66 products: Designed for use in environments where the level of chemically active substances does not exceed the limits of class 3C3, and where the levels of mechanically active substances do not exceed the limits of class 3S3 according to IEC60721-3.
