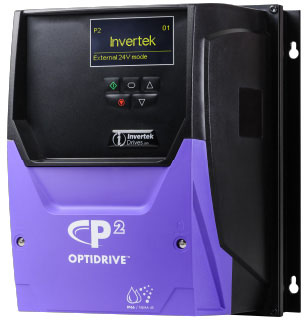

High Performance Drive
Optidrive P2 Specification
Size & Weight
| IP20 |
|---|
| Height mm (in) |
| Width mm (in) |
| Depth mm (in) |
| Weight kg (lb) |
| Fixings |
| Packaged Height mm (in) |
| Packaged Width mm (in) |
| Packaged Depth mm (in) |
| Packaged Weight kg (lb) |
| IP20 | Size 2 |
|---|---|
| Height mm (in) | 221 (8.7) |
| Width mm (in) | 110 (4.33) |
| Depth mm (in) | 185 (7.28) |
| Weight kg (lb) | 1.8 (3.97) |
| Fixings | 4 x M4 |
| Packaged Height mm (in) | 265 (10.43) |
| Packaged Width mm (in) | 145 (5.71) |
| Packaged Depth mm (in) | 230 (9.06) |
| Packaged Weight kg (lb) | 1.9 (4.19) |
| IP20 | Size 3 |
|---|---|
| Height mm (in) | 261 (10.28) |
| Width mm (in) | 131 (5.16) |
| Depth mm (in) | 205 (8.07) |
| Weight kg (lb) | 3.5 (7.72) |
| Fixings | 4 x M4 |
| Packaged Height mm (in) | 325 (12.8) |
| Packaged Width mm (in) | 165 (6.5) |
| Packaged Depth mm (in) | 260 (10.24) |
| Packaged Weight kg (lb) | 3.7 (8.16) |
| IP20 | Size 4 |
|---|---|
| Height mm (in) | 418 (16.46) |
| Width mm (in) | 172 (6.77) |
| Depth mm (in) | 240 (9.45) |
| Weight kg (lb) | 9.2 (20.28) |
| Fixings | 4 x M8 |
| Packaged Height mm (in) | 340 (13.39) |
| Packaged Width mm (in) | 280 (11.02) |
| Packaged Depth mm (in) | 560 (22.05) |
| Packaged Weight kg (lb) | 11.2 (24.69) |
| IP20 | Size 5 |
|---|---|
| Height mm (in) | 486 (19.13) |
| Width mm (in) | 233 (9.17) |
| Depth mm (in) | 260 (10.24) |
| Weight kg (lb) | 18.1 (39.9) |
| Fixings | 4 x M8 |
| Packaged Height mm (in) | 356 (14.02) |
| Packaged Width mm (in) | 336 (13.23) |
| Packaged Depth mm (in) | 658 (25.91) |
| Packaged Weight kg (lb) | 20.1 (44.31) |
| IP20 | Size 6A |
|---|---|
| Height mm (in) | 614 (24.17) |
| Width mm (in) | 286 (11.26) |
| Depth mm (in) | 320 (12.6) |
| Weight kg (lb) | 32 (70.55) |
| Fixings | - |
| Packaged Height mm (in) | 380 (14.96) |
| Packaged Width mm (in) | 375 (14.76) |
| Packaged Depth mm (in) | 780 (30.71) |
| Packaged Weight kg (lb) | 35 (77.16) |
| IP20 | Size 6B |
|---|---|
| Height mm (in) | 726 (28.58) |
| Width mm (in) | 330 (12.99) |
| Depth mm (in) | 320 (12.6) |
| Weight kg (lb) | 43 (94.8) |
| Fixings | - |
| Packaged Height mm (in) | 380 (14.96) |
| Packaged Width mm (in) | 375 (14.76) |
| Packaged Depth mm (in) | 785 (30.91) |
| Packaged Weight kg (lb) | 46 (101.41) |
| IP20 | Size 8 |
|---|---|
| Height mm (in) | 974 (38.35) |
| Width mm (in) | 444 (17.48) |
| Depth mm (in) | 423 (16.65) |
| Weight kg (lb) | 124.5 (274.48) |
| Fixings | 4 x M12 |
| Packaged Height mm (in) | 660 (25.98) |
| Packaged Width mm (in) | 620 (24.41) |
| Packaged Depth mm (in) | 1020 (40.16) |
| Packaged Weight kg (lb) | 144 (317.47) |
| IP55 |
|---|
| Height mm (in) |
| Width mm (in) |
| Depth mm (in) |
| Weight kg (lb) |
| Fixings |
| Packaged Height mm (in) |
| Packaged Width mm (in) |
| Packaged Depth mm (in) |
| Packaged Weight kg (lb) |
| IP55 | Size 4 |
|---|---|
| Height mm (in) | 450 (17.72) |
| Width mm (in) | 171 (6.73) |
| Depth mm (in) | 252 (9.92) |
| Weight kg (lb) | 11.5 (25.35) |
| Fixings | 4 x M8 |
| Packaged Height mm (in) | 510 (20.08) |
| Packaged Width mm (in) | 240 (9.45) |
| Packaged Depth mm (in) | 330 (12.99) |
| Packaged Weight kg (lb) | 13.5 (29.76) |
| IP55 | Size 5 |
|---|---|
| Height mm (in) | 540 (21.26) |
| Width mm (in) | 235 (9.25) |
| Depth mm (in) | 270 (10.63) |
| Weight kg (lb) | 23 (50.71) |
| Fixings | 4 x M8 |
| Packaged Height mm (in) | 595 (23.43) |
| Packaged Width mm (in) | 350 (13.78) |
| Packaged Depth mm (in) | 375 (14.76) |
| Packaged Weight kg (lb) | 25 (55.12) |
| IP55 | Size 6 |
|---|---|
| Height mm (in) | 865 (34.06) |
| Width mm (in) | 330 (12.99) |
| Depth mm (in) | 332 (13.07) |
| Weight kg (lb) | 55 (121.25) |
| Fixings | 4 x M10 |
| Packaged Height mm (in) | 980 (38.58) |
| Packaged Width mm (in) | 450 (17.72) |
| Packaged Depth mm (in) | 450 (17.72) |
| Packaged Weight kg (lb) | 58 (127.87) |
| IP55 | Size 7 |
|---|---|
| Height mm (in) | 1280 (50.39) |
| Width mm (in) | 330 (12.99) |
| Depth mm (in) | 358 (14.09) |
| Weight kg (lb) | 89 (196.21) |
| Fixings | 4 x M10 |
| Packaged Height mm (in) | 1420 (55.91) |
| Packaged Width mm (in) | 540 (21.26) |
| Packaged Depth mm (in) | 560 (22.05) |
| Packaged Weight kg (lb) | 96 (211.64) |
| IP55 | Size 8 |
|---|---|
| Height mm (in) | 1334 (52.52) |
| Width mm (in) | 444 (17.48) |
| Depth mm (in) | 423 (16.65) |
| Weight kg (lb) | 144 (317.47) |
| Fixings | 4 x M12 |
| Packaged Height mm (in) | 980 (38.58) |
| Packaged Width mm (in) | 610 (24.02) |
| Packaged Depth mm (in) | 1040 (40.94) |
| Packaged Weight kg (lb) | 165 (363.76) |
| IP66 Outdoor |
|---|
| Height mm (in) |
| Width mm (in) |
| Depth mm (in) |
| Weight kg (lb) |
| Fixings |
| Packaged Height mm (in) |
| Packaged Width mm (in) |
| Packaged Depth mm (in) |
| Packaged Weight kg (lb) |
| IP66 Outdoor | Size 2 |
|---|---|
| Height mm (in) | 257 (10.12) |
| Width mm (in) | 188 (7.4) |
| Depth mm (in) | 172 (6.77) |
| Weight kg (lb) | 3.5 (7.72) |
| Fixings | 4 x M4 |
| Packaged Height mm (in) | 215 (8.46) |
| Packaged Width mm (in) | 235 (9.25) |
| Packaged Depth mm (in) | 375 (14.76) |
| Packaged Weight kg (lb) | 4.2 (9.26) |
| IP66 Outdoor | Size 3 |
|---|---|
| Height mm (in) | 310 (12.2) |
| Width mm (in) | 211 (8.31) |
| Depth mm (in) | 235 (9.25) |
| Weight kg (lb) | 6.6 (14.55) |
| Fixings | 4 x M4 |
| Packaged Height mm (in) | 305 (12.01) |
| Packaged Width mm (in) | 270 (10.63) |
| Packaged Depth mm (in) | 440 (17.32) |
| Packaged Weight kg (lb) | 7.6 (16.76) |
| IP66 Outdoor | Size 4 |
|---|---|
| Height mm (in) | 360 (14.17) |
| Width mm (in) | 240 (9.45) |
| Depth mm (in) | 271 (10.67) |
| Weight kg (lb) | 9.5 (20.94) |
| Fixings | 4 x M4 |
| Packaged Height mm (in) | 325 (12.8) |
| Packaged Width mm (in) | 295 (11.61) |
| Packaged Depth mm (in) | 425 (16.73) |
| Packaged Weight kg (lb) | 11.5 (25.35) |
Technical Specification
Input Ratings
Supply Voltage
200 – 240V ± 10%
380 – 480V ± 10%
500 – 600V ± 10%
380 – 480V ± 10%
500 – 600V ± 10%
Supply Frequency
48 – 62Hz
Displacement Power Factor
> 0.98
Phase Imbalance
3% Maximum allowed
Inrush Current
< rated current
Power Cycles
120 per hour maximum, evenly spaced
Output Ratings
Output Power
230V 1 Phase: 0.75–7.5kW / 1–10HP
230V 3 Phase: 0.75–75kW / 1–100HP
400V 3 Phase: 0.75–250kW
460V 3 Phase: 1–350HP
575V 3 Phase: 0.75–110kW / 1–150HP
230V 3 Phase: 0.75–75kW / 1–100HP
400V 3 Phase: 0.75–250kW
460V 3 Phase: 1–350HP
575V 3 Phase: 0.75–110kW / 1–150HP
Overload Capacity
150% for 60 seconds
Output Frequency
0 – 500Hz, 0.1Hz resolution
Acceleration Time
0.01 – 600 seconds
Deceleraton Time
0.01 – 600 seconds
Typical Efficiency
98%
Ambient Conditions
Temperature
Storage : −40 to 60°C
Operating :
IP20: −10 to 50°C
IP55: −10 to 40°C
−10 to 50°C (derated)
IP66: −20 to 40°C
−20 to 50°C (derated)
Operating :
IP20: −10 to 50°C
IP55: −10 to 40°C
−10 to 50°C (derated)
IP66: −20 to 40°C
−20 to 50°C (derated)
Altitude
Up to 1000m ASL without derating
Up to 2000m maximum UL Approved
Up to 4000m maximum (non UL)
Up to 2000m maximum UL Approved
Up to 4000m maximum (non UL)
Humidity
95% Max, non-condensing
Vibration
Conforms to IEC 60068-2-6
Sinusoidal Vibration
10 - 57Hz @ 0.075mm Pk
57 - 150Hz @ 1g Pk
Sinusoidal Vibration
10 - 57Hz @ 0.075mm Pk
57 - 150Hz @ 1g Pk
Enclosure
Ingress Protection
IP20, IP55, IP66
Programming
Keypad
Built-in keypad as standard
Optional remote mountable keypad
Optional remote mountable keypad
Display
Built-in multi language text display
PC
OptiTools Studio
Control Specification
Control Method
V/F Voltage Vector
Energy Optimsied V/F
3GV Sensorless Vector Speed Control
3GV Sensorless Vector Torque Control
Closed Loop (Encoder) Speed Control
Closed Loop (Encoder) Torque Control
PM Vector Control
BLDC Control
Synchronous Reluctance
Energy Optimsied V/F
3GV Sensorless Vector Speed Control
3GV Sensorless Vector Torque Control
Closed Loop (Encoder) Speed Control
Closed Loop (Encoder) Torque Control
PM Vector Control
BLDC Control
Synchronous Reluctance
PWM Frequency
4 – 32kHz Effective
Stopping Mode
Ramp to Stop: User Adjustable 0.01–600 secs
Coast to Stop
Coast to Stop
Braking
Motor Flux Braking
Built-in Braking Transistor
Built-in Braking Transistor
Skip Frequency
Single point, user adjustable
Setpoint Control
Analog Signal
0 to 10 Volts
10 to 0 Volts
−10 to 10 Volts
0 to 20mA
20 to 0mA
4 to 20mA
20 to 4mA
10 to 0 Volts
−10 to 10 Volts
0 to 20mA
20 to 0mA
4 to 20mA
20 to 4mA
Digital
Motorised Potentiometer (Keypad)
Modbus RTU
CANopen
Modbus RTU
CANopen
Fieldbus
Built in
CANopen
125 – 1000kbps
Modbus RTU
9.6 - 115.2 kbps selectable
8N1, 8N2, 8E1, 8O1
8N1, 8N2, 8E1, 8O1
Optional
Other
PROFIBUS DP (DPV1)
PROFINET IO
DeviceNet
EtherNet/IP
EtherCAT
Modbus TCP
PROFINET IO
DeviceNet
EtherNet/IP
EtherCAT
Modbus TCP
I/O Specification
Power Supply
24 Volt DC, 100mA, Short Circuit Protected
10 Volt DC, 10mA for Potentiometer
10 Volt DC, 10mA for Potentiometer
Programmable Inputs
5 Total as standard (Optional additional 3)
3 Digital (Optional additional 3)
2 Analog / Digital Selectable
3 Digital (Optional additional 3)
2 Analog / Digital Selectable
Digital Inputs
Opto - Isolated
8 – 30 Volt DC, internal or external supply
Response time < 4ms
8 – 30 Volt DC, internal or external supply
Response time < 4ms
Analog Inputs
Resolution : 12 bits
Response time : < 4ms
Accuracy : < 1% full scale
Parameter adjustable scaling and offset
Response time : < 4ms
Accuracy : < 1% full scale
Parameter adjustable scaling and offset
PTC Input
Motor PTC / Thermistor Input
Trip Level : 3kΩ
Trip Level : 3kΩ
Programmable Outputs
4 Total (Optional additional 3)
2 Analog / Digital
2 Relays (Optional additional 3)
2 Analog / Digital
2 Relays (Optional additional 3)
Relay Outputs
Maximum Voltage : 250 VAC, 30 VDC
Switching Current Capacity : 5A AC , 5A DC
Switching Current Capacity : 5A AC , 5A DC
Analog Outputs
0 to 10 Volt
0 to 20mA
4 to 20mA
0 to 20mA
4 to 20mA
Application Features
PID Control
Internal PID Controller
Multi Setpoint Select
Standby / Sleep Mode
Boost Function
Multi Setpoint Select
Standby / Sleep Mode
Boost Function
Hoist Mode
Dedicated Hoist Mode
Motor Holding Brake Pre-Torque & Control
Over Limit Protection
Motor Holding Brake Pre-Torque & Control
Over Limit Protection
Maintenance & Diagnostics
Fault Memory
Last 4 Trips stored with time stamp
Data Logging
Logging of data prior to trip for diagnostic purposes : Output Current, Drive Temperature, DC Bus Voltage
Maintenance Indicator
Maintenance Indicator with user adjustable maintenance interval
Onboard service life monitoring
Onboard service life monitoring
Monitoring
Hours Run Meter
Resettable & Non Resettable kWh meters
Cooling Fan Run Time
Resettable & Non Resettable kWh meters
Cooling Fan Run Time
Standards Compliance
Low Voltage Directive
2014/35/EU
EMC Directive
2014/30/EU
Additional Conformance
UL, cUL, EAC, RCM
Marine Certification
DNV Type Approval
Environmental
IP20 products: Designed for use in environments where the level of chemically active substances does not exceed the limits of class 3C2, and where the levels of mechanically active substances do not exceed the limits of class 3S2 according to IEC60721-3.
IP55 & IP66 products: Designed for use in environments where the level of chemically active substances does not exceed the limits of class 3C3, and where the levels of mechanically active substances do not exceed the limits of class 3S3 according to IEC60721-3.
IP55 & IP66 products: Designed for use in environments where the level of chemically active substances does not exceed the limits of class 3C3, and where the levels of mechanically active substances do not exceed the limits of class 3S3 according to IEC60721-3.
