General Purpose Drive
Compare the Optidrive E Series
Increased capability without complexity
Simple Commissioning
14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.
Up to 50 parameters available in total for a highly flexible performance.
Intuitive Keypad Control
Precise digital control at the touch of a button.
- Internal PI control
- Internal brake chopper
- Dual analogue inputs
- Operates at up to 50°C
Internal Category C1 EMC Filter
An internal filter in every Optidrive E4 saves cost and time for installation.
Cat C1 according to EN61800-3:2004
Sensorless Vector Control for all Motor Types
- Induction Motors (IM)
- Permanent Magnet Motors (PM)
- Brushless DC Motors (BLDC)
- Synchronous Reluctance Motors (SynRM)
- Line Start PM Motor (LSPM)
- Permanent Magnet Assisted Reluctance motor (PMAREL)
- on board as standard
Optistick Pro Compatible
Rapid commissioning tool.
Enclosure Options

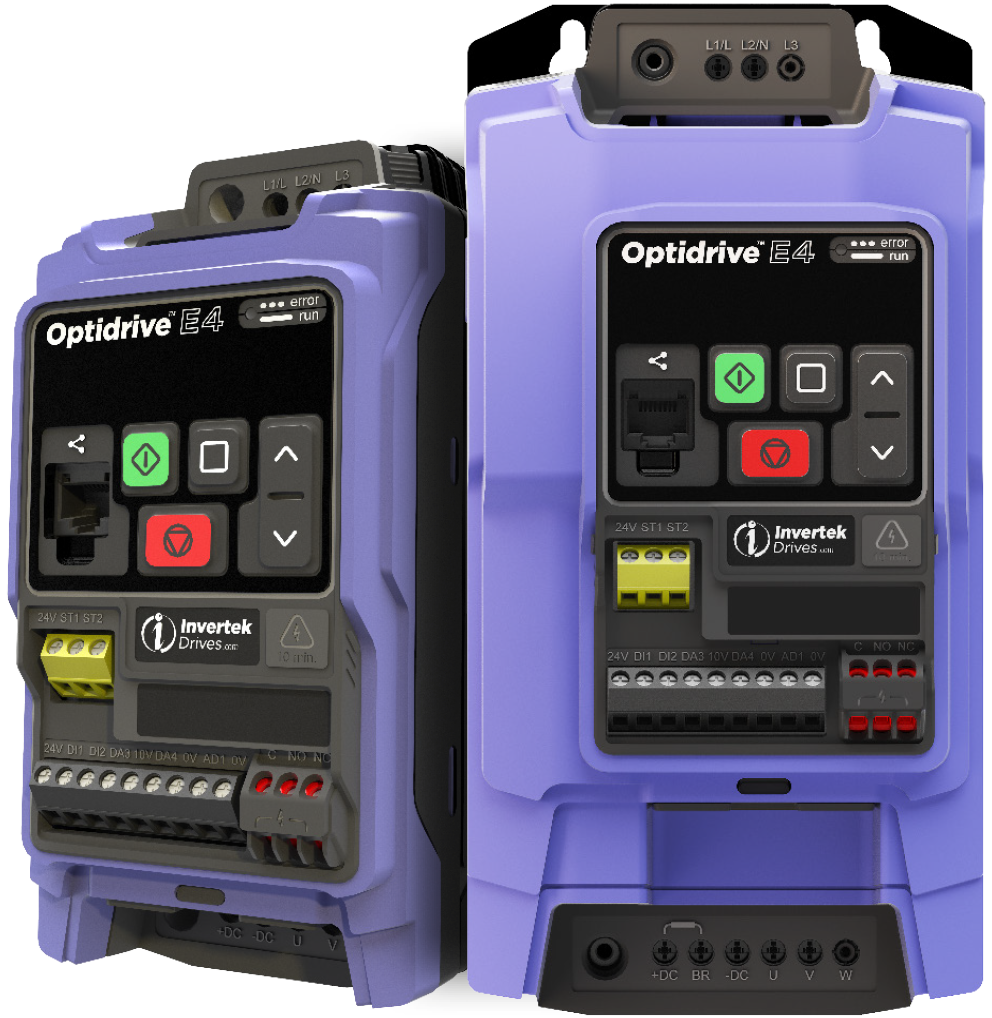

Optidrive E4 is available in IP20 enclosures.
- Compact, robust enclosures for panel/cabinet mounting
- Sizes 1-2 cover the full power range, up to 4 kW/5 HP
- Operates up to 50°C
- Power supply connects at the top
- Motor supply connect at the bottom
-
Fast Connection
5mm rising clamp terminals with captive screws
-
Simple Installation
DIN rail and keyhole mounting options
-
on-board as standard
-
Optistick Pro
Rapid parameter cloning and Bluetooth PC interface
Manufactured in the UK
Invertek’s products are designed and manufactured in the UK to the quality and environmental management system principals of ISO 9001 and ISO 14001:2015
